The product FXP-S-SVK 442 5R18 O10O10 phases out and is available until 12/31/2027.

The product can no longer be ordered after this date. If you have any questions about an alternative, please get in touch with your local contact person.

Go to contact form

Back to product family

Product information

PHASE-OUT ITEM

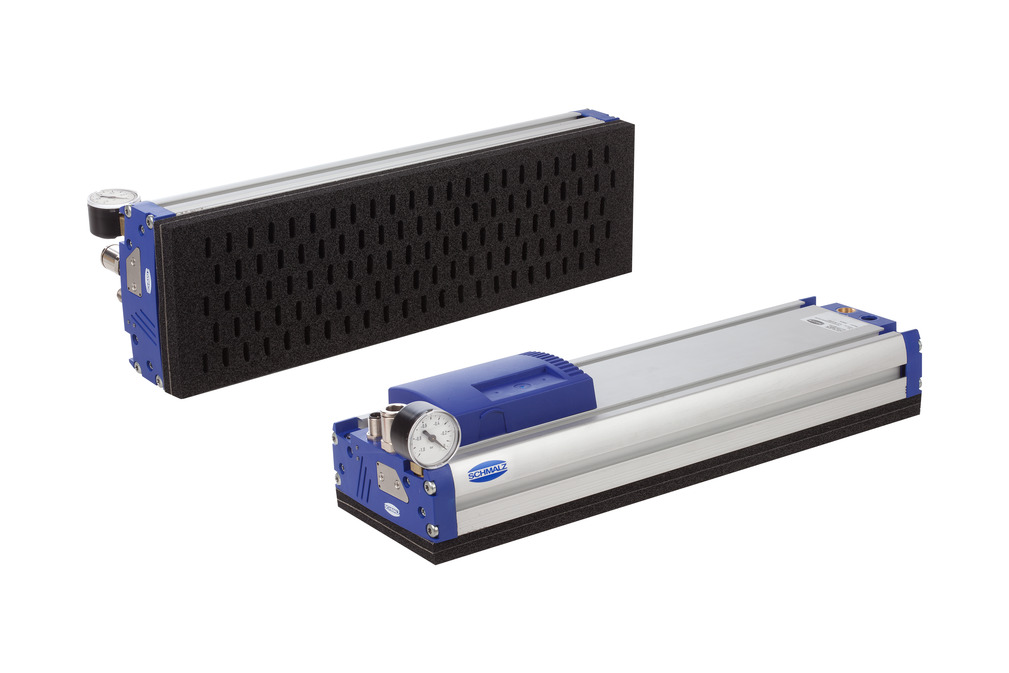

FXP-S-SVK 442 5R18 O10O10

Part no.: 10.01.38.00918

Vacuum area gripping system with integrated pneumatic vacuum ball check valves

Length L	442 (mm)
Width B	130 (mm)
Arrangement	5R18
Material type	Schaum Offen, Höhe 2 x 10 mm
Number of suction cells	110
Additional function area gripper	1x control valve vacuum / blow-off
Design vacuum generator	Multi-stage ejector SEMP
Construction vacuum switch	PNP switching
Voltage DC	24 V - DC
Air consumption [l/min]	250 (l/min)
Weight	2.8 (kg)
Product family	FXP

Product information

Design Data

Design image

Attribute	Value
B	130 mm
B3	21.6 mm
H	70 mm
H1	109 mm
H2	20 mm
H3	7.7 mm
H4	5.5 mm
H5	28 mm
L	442 mm
L2	402 mm
L3	154 mm
Y1	90 mm
Valve type	SVK

Permissible dimensional tolerances for elastomer parts according to DIN ISO 3302-1 M3 Note: Two ejectors and silencer box covers are used for the 1,234 mm and 1,432 mm lengths. Type FXP requires compressed air hose 12/9 mm.

Technical Data

Attribute	Value
Arrangement	5R18
Material type	Schaum Offen, Höhe 2 x 10 mm
Number of suction cells	110
Suction force at -250 mbar	430 N
Suction rate (max.)	1,050 l/min
Air consumption [l/min]	250 l/min
Voltage	24V - DC
Sealing element	Sealing Foam
Additional function area gripper	1x control valve vacuum / blow-off
Weight	2.8 kg
Product family	FXP

Sound level: 74 dB(A) Max. degree of evacuation 55 %

Documentation

Spare parts

ERS FXP-S-SEMP-50 DECKEL

ERS FXP-S-SEMP-50 DECKEL 10.01.38.02190 Spare part set

Measuring range [bar]	bar
Size	SEMP-50
contains	Cover
Utilization design	Vacuum area gripping system FXP-S

MASK-FOL SVK 402 5R18 FXP-FMP

MASK-FOL SVK 402 5R18 FXP-FMP 10.01.38.00520 Front foil

Length L	402 (mm)
Width B	109.8 (mm)
Height H	0.4 (mm)
Arrangement suction cells	5 rows, 18 mm
Measuring range [bar]	bar
Utilization design	Vacuum area gripping system FXP-FMP

SD 120x79x29 FXP

SD 120x79x29 FXP 10.01.38.01607 Silencer for vacuum generators

Length L	120 (mm)
Width B	79 (mm)
Height H	29 (mm)
Utilization design	Vacuum area gripping system FXP

DI-PL 442-5R18 O10O10 FXP-FMP

DI-PL 442-5R18 O10O10 FXP-FMP 10.01.38.00864 Sealing plate

Length L	442 (mm)
Width B	128 (mm)
Arrangement	5R18
Utilization design	Vacuum area gripping system FXP-FMP

Accessories

FLAN-PL 120x85x10 ST FLGR

FLAN-PL 120x85x10 ST FLGR 10.01.10.05701 Flange plate

Length L	120 (mm)
Width B	85 (mm)
Height H	10 (mm)
Material	Steel
Utilization design	Vacuum area gripping system

FLK G1/2-IG G1/2-AG

FLK G1/2-IG G1/2-AG 10.01.03.00175 Flexible suction cup mounting for adaptation to sloping surfaces

Thread G1	G1/2"-F
Thread G2	G1/2"-M
Operating temperature	0 ... 70 °C

FST-FLEX 25 HD1 G1/2-AG G3/8-IG

FST-FLEX 25 HD1 G1/2-AG G3/8-IG 10.01.10.05697 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 25 HD2 G1/2-AG G3/8-IG

FST-FLEX 25 HD2 G1/2-AG G3/8-IG 10.01.10.05695 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 50 HD1 G1/2-AG G3/8-IG

FST-FLEX 50 HD1 G1/2-AG G3/8-IG 10.01.10.05687 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 50 HD2 G1/2-AG G3/8-IG

FST-FLEX 50 HD2 G1/2-AG G3/8-IG 10.01.10.05168 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 75 HD1 G1/2-AG G3/8-IG

FST-FLEX 75 HD1 G1/2-AG G3/8-IG 10.01.10.05698 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 75 HD2 G1/2-AG G3/8-IG

FST-FLEX 75 HD2 G1/2-AG G3/8-IG 10.01.10.05696 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 25 HD1 G1/2-AG G3/8-IG

FST-STARR 25 HD1 G1/2-AG G3/8-IG 10.01.10.05810 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 25 HD2 G1/2-AG G3/8-IG

FST-STARR 25 HD2 G1/2-AG G3/8-IG 10.01.10.05806 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 50 HD1 G1/2-AG G3/8-IG

FST-STARR 50 HD1 G1/2-AG G3/8-IG 10.01.10.05809 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 50 HD2 G1/2-AG G3/8-IG

FST-STARR 50 HD2 G1/2-AG G3/8-IG 10.01.10.05805 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 75 HD1 G1/2-AG G3/8-IG

FST-STARR 75 HD1 G1/2-AG G3/8-IG 10.01.10.05808 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 75 HD2 G1/2-AG G3/8-IG

FST-STARR 75 HD2 G1/2-AG G3/8-IG 10.01.10.05803 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

MOD-FLAN 120x120 FXP-FMP

MOD-FLAN 120x120 FXP-FMP 10.01.21.00244 Flange module

Length L	120 (mm)
Width B	120 (mm)
Height H	60 (mm)
Measuring range [bar]	bar
Thread G1	G1/2"-F
Weight	1.1 (kg)
Utilization design	Vacuum area gripping system FXP-FMP

MOD-FLAN 176.6x118 FXP

MOD-FLAN 176.6x118 FXP 10.01.38.01722 Flange module

Length L	176.6 (mm)
Width B	118 (mm)
Height H	40 (mm)
Utilization design	Vacuum area gripping system FXP

VS-MONT 84x21x34.5 VSi-V FXP

VS-MONT 84x21x34.5 VSi-V FXP 10.01.38.02691 Vacuum switch (inst)

Length L	84 (mm)
Width B	21 (mm)
Height H	34.5 (mm)
Utilization design	Vacuum area gripping system FXP

SET fuer-Sensor(FXP/FMP)

SET fuer-Sensor(FXP/FMP)10.01.38.01194 Proximity switch mounting set

SET FXC-FMC

SET FXC-FMC 10.01.21.01291 Mounting set

Length L	119 (mm)
Width B	119 (mm)
Height H	9.6 (mm)
Measuring range [bar]	bar
Thread G1	G1/2"-F
Utilization design	Vacuum area gripping system FXC-FMC

SET FXP-FMP

SET FXP-FMP 10.01.21.02407 Mounting set

Length L	232 (mm)
Width B	119 (mm)
Height H	119 (mm)
Measuring range [bar]	bar
Weight	1.3 (kg)
Utilization design	Vacuum area gripping system FXP-FMP

SET FXP-FMP 4NUTSTEIN G20

SET FXP-FMP 4NUTSTEIN G20 10.01.21.00243 Mounting set

contains	4 sliding blocks
Measuring range [bar]	bar
Utilization design	Vacuum area gripping system FXP-FMP

VAM 40 V U BAR

VAM 40 V U BAR 10.07.02.00046 Vacuum gauge (manometer) for analogue measurement and monitoring of the vacuum

Width B	23 (mm)
Height H	46 (mm)
Outside diameter D	40 (mm)
Measuring range [bar]	-1,00 ... 0,00 bar
Shape manometers	Connection at bottom
Thread G1	G1/8"-M
Weight	0.06 (kg)

VSL 12-9 PU MI-TR

VSL 12-9 PU MI-TR 10.07.09.00037 Hose for vacuum and compressed-air systems

Outside diameter D	12 (mm)
Internal diameter d	9 (mm)
Length max.	50 (m)
Material hose	PU
Bending radius min.	70 (mm)
Pressure range (operating pressure) [bar]	-0.95 ... 10.00 bar
Operating temperature	-20 ... 90 °C
Color	Milky-transparent

NUT-STEI 20x20 M8-IG 10

NUT-STEI 20x20 M8-IG 10 25.09.06.00012 Nut for profile slot

Width B	20 (mm)
Height H	4.9 (mm)
Material	Steel
Length L	20 (mm)
Thread G1	M8-F
Shape mounting elements	With step
Surface	galvanised
Weight	15.9 (g)

NUT-STEI 20x20 M6-IG 10

NUT-STEI 20x20 M6-IG 10 25.09.06.00036 Nut for profile slot

Width B	20 (mm)
Height H	5 (mm)
Material	Steel
Length L	20 (mm)
Thread G1	M6-F
Shape mounting elements	With step
Surface	galvanised

ABDK-PROF-10x7x1450-KU-SW-FXP-FMP

ABDK-PROF-10x7x1450-KU-SW-FXP-FMP 26.07.03.00002 Cover Profile

Length L	1450 (mm)
Width B	10 (mm)
Height H	7 (mm)
Material	Plastics
Color	black
Measuring range [bar]	bar
Utilization design	Vacuum area gripping system FXP-FMP

ASK B-M12-5 5000 K-5P

ASK B-M12-5 5000 K-5P 21.04.05.00080 Connection cable

Electrical connection	Fem connect M12, 5 pol
Cable length	5000 (mm)
Connection 2	Cable, 5-pole
Material hose	PUR cable

FLAN-PL 120x120x10 FXC-FMC

FLAN-PL 120x120x10 FXC-FMC 10.01.21.00313 Flange plate

Length L	120 (mm)
Width B	120 (mm)
Height H	10 (mm)
Measuring range [bar]	bar
Utilization design	Vacuum area gripping system FXC-FMC

FLK G1/2-IG G1/2-AG V

FLK G1/2-IG G1/2-AG V 10.01.03.00207 Flexible suction cup mounting for adaptation to sloping surfaces

Thread G1	G1/2"-F
Thread G2	G1/2"-M
Operating temperature	0 ... 70 °C
Shape mounting elements	reinforced

VS-MONT 76.5x19 VSi FXP-FMP

VS-MONT 76.5x19 VSi FXP-FMP 10.01.38.02485 Vacuum switch (inst)

Length L	76.5 (mm)
Width B	19 (mm)
Special function	Can be mounted upright
Additional function area gripper	Vacuum and pressure switch VSi
Measuring range [bar]	bar
with	Vacuum and pressure switch
Utilization design	Vacuum area gripping system FXP-FMP
