The product FMP-S-SW140 1432 3R54 SPB2-40P F G60 phases out and is available until 12/31/2027.

The product can no longer be ordered after this date. If you have any questions about an alternative, please get in touch with your local contact person.

Go to contact form

Back to product family

Product information

PHASE-OUT ITEM

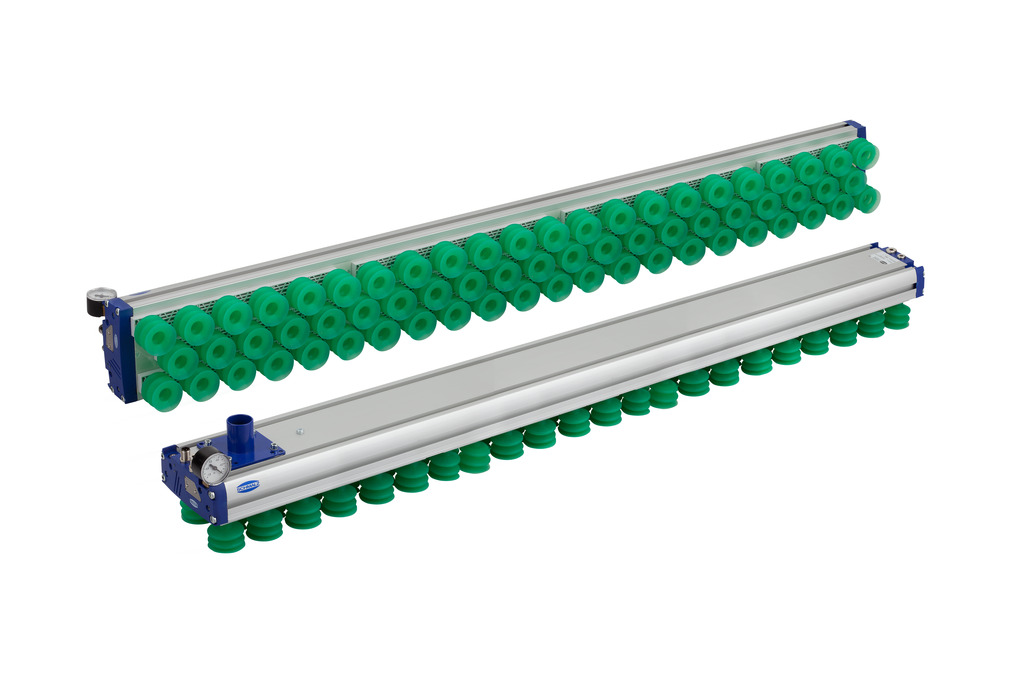

FMP-S-SW140 1432 3R54 SPB2-40P F G60

Part no.: 10.01.38.03490

Vacuum area gripping system for external vacuum generator, with flow resistors

Length L	1432 (mm)
Width B	130 (mm)
Arrangement	3R54
Additional function area gripper	Filter
Shape fittings	Straight
Outside diameter D	60 (mm)
Additional function area gripper	1x control valve vacuum / blow-off
Max. air consumption blow-off	800 (l/min)
Construction vacuum switch	PNP switching
Weight	8.5 (kg)
Product family	FMP

Product information

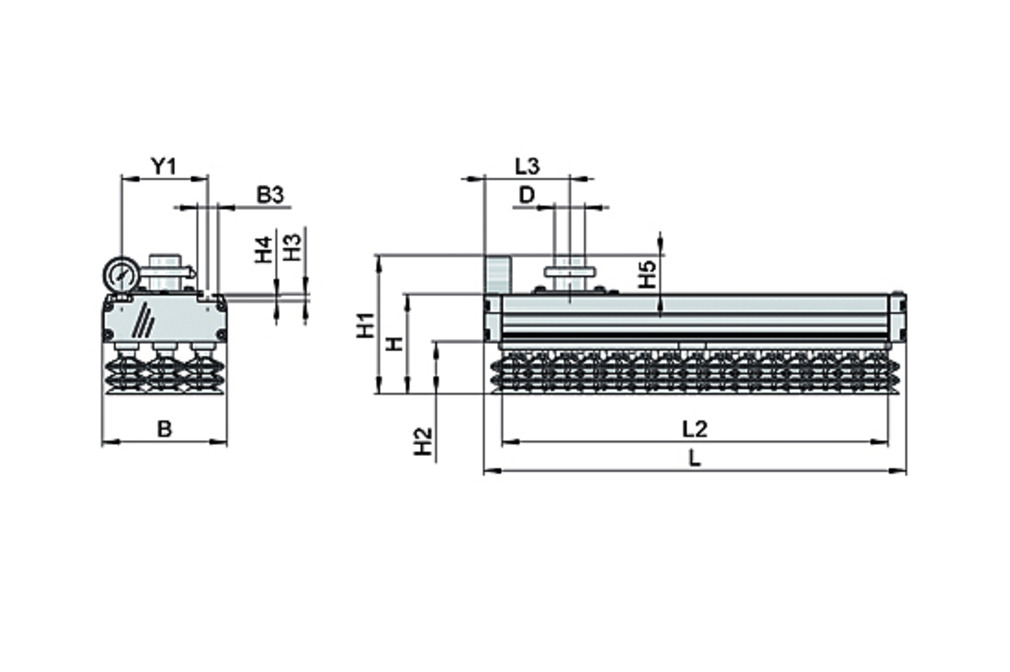

Design Data

Design image

Attribute	Value
B	130 mm
B3	21.6 mm
D	60 mm
H	104.8 mm
H1	150.4 mm
H2	55 mm
H3	7.7 mm
H4	5.5 mm
H5	46 mm
L	1,432 mm
L2	1,392 mm
L3	77 mm
Y1	90 mm
Valve type	SW

Note: Vacuum hose with internal diameter equal to dimension D required. See Technical Data -> Shape

Technical Data

Attribute	Value
Arrangement	3R54
Number of suction cells	77
Suction force at -250 mbar	680 N
Voltage	24V - DC
Additional function area gripper	Filter
with	Filter
Additional function area gripper	1x control valve vacuum / blow-off
Weight	8.5 kg
Sealing element	Suction Cups
Required suction capacity for pu = -0.25 bar	1,050 l/min
Product family	FMP

Note: Air consumption: At 5.5 bar compressed air input pressure / Suction force: At a vacuum of -0.25 bar and full occupancy of the gripper with a workpiece typical for the application (wooden board with textured surface) / Required suction capacity: The external vacuum generator used must provide at least the specified suction volume (at the vacuum connection piece of the FMP) at a vacuum of -0.25 bar, but max. 135 % of the specified suction volume
