The product FMP-SW70 1234 3R18 O10O10 F G60 phases out and is available until 12/31/2027.

The product can no longer be ordered after this date. If you have any questions about an alternative, please get in touch with your local contact person.

Go to contact form

Back to product family

Product information

PHASE-OUT ITEM

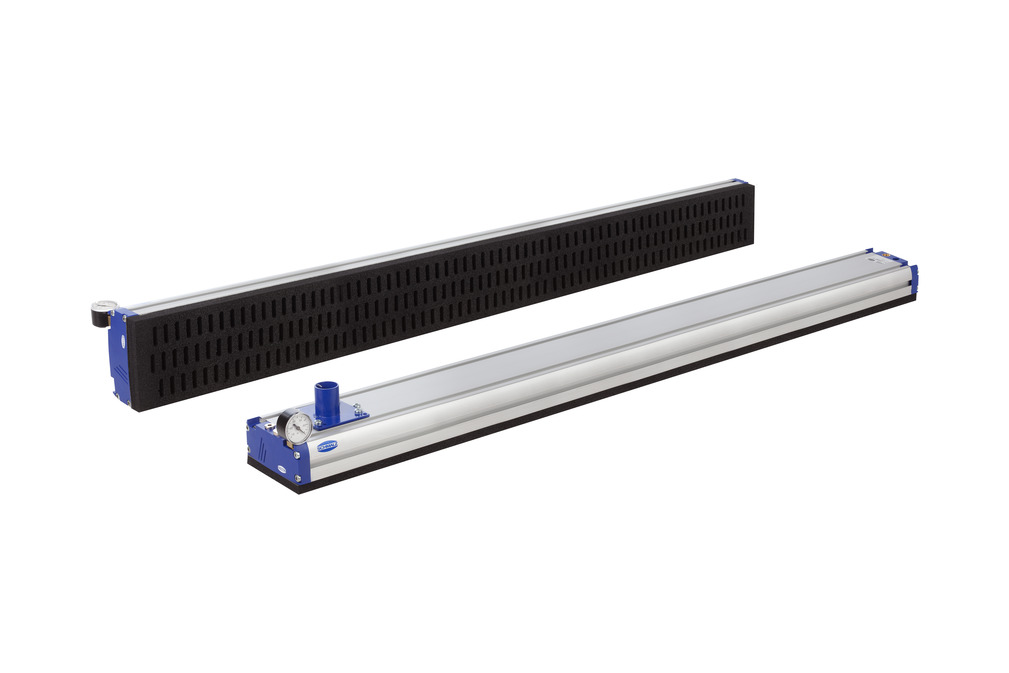

FMP-SW70 1234 3R18 O10O10 F G60

Part no.: 10.01.38.00431

Vacuum area gripping system for external vacuum generator, with flow resistors

Length L	1234 (mm)
Width B	130 (mm)
Arrangement	3R18
Material type	Schaum Offen, Höhe 2 x 10 mm
Additional function area gripper	Filter
Shape fittings	Straight
Outside diameter D	60 (mm)
Weight	5 (kg)
Product family	FMP

Product information

Design Data

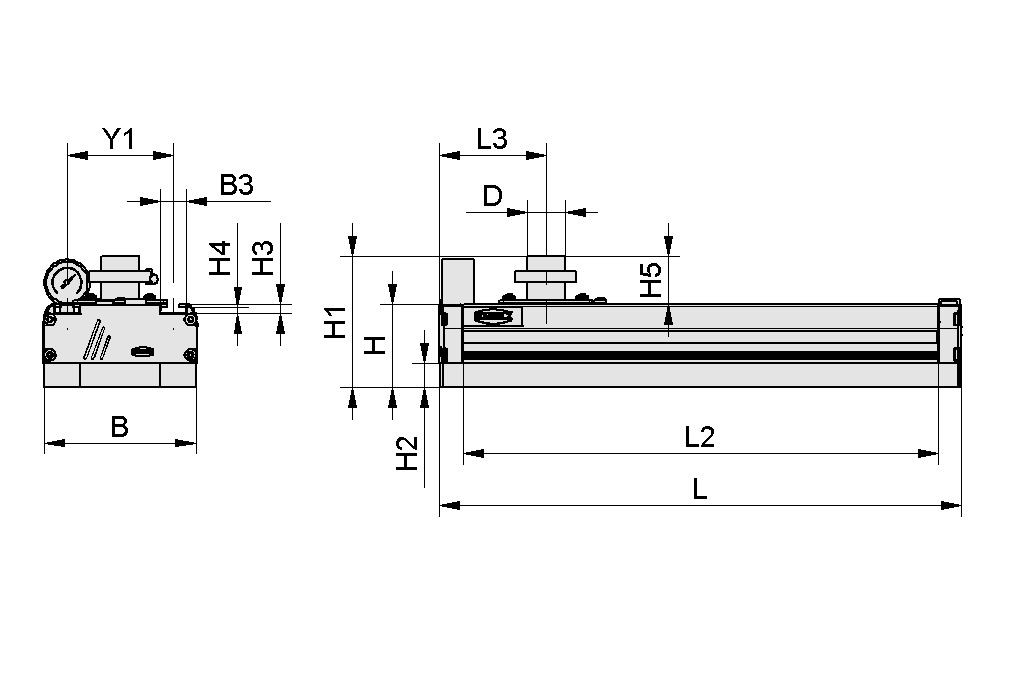

Design image

Attribute	Value
B	130 mm
B3	21.6 mm
D	60 mm
H	70 mm
H1	116 mm
H2	20 mm
H3	7.7 mm
H4	5.5 mm
H5	46 mm
L	1,234 mm
L2	1,194 mm
L3	90 mm
Y1	90 mm
Valve type	SW

Note: Vacuum hose with internal diameter equal to dimension D required. See Technical Data -> Shape

Technical Data

Attribute	Value
Arrangement	3R18
Material type	Schaum Offen, Höhe 2 x 10 mm
Number of suction cells	198
Suction force at -250 mbar	1,310 N
Additional function area gripper	Filter
with	Filter
Weight	5 kg
Sealing element	Sealing Foam
Required suction capacity for pu = -0.25 bar	900 l/min
Product family	FMP

Note: Air consumption: At 5.5 bar compressed air input pressure / Suction force: At a vacuum of -0.25 bar and full occupancy of the gripper with a workpiece typical for the application (wooden board with textured surface) / Required suction capacity: The external vacuum generator used must provide at least the specified suction volume (at the vacuum connection piece of the FMP) at a vacuum of -0.25 bar, but max. 135 % of the specified suction volume

Documentation

Spare parts

MASK-FOL SW70 1194 3R18 FXP-FMP

MASK-FOL SW70 1194 3R18 FXP-FMP 10.01.38.00505 Front foil

Length L	1194 (mm)
Width B	109.8 (mm)
Height H	0.4 (mm)
Arrangement suction cells	3 rows, 18 mm
Measuring range [bar]	bar
Nozzle diameter	0.7 (mm)
Utilization design	Vacuum area gripping system FXP-FMP

DI-PL 1234-3R18 O10O10 F FXP-FMP

DI-PL 1234-3R18 O10O10 F FXP-FMP 10.01.38.00196 Sealing plate

Length L	1234 (mm)
Width B	128 (mm)
Arrangement	3R18
Additional function area gripper	Filter
Utilization design	Vacuum area gripping system FXP-FMP

Accessories

ABDK-PROF-10x7x1450-KU-SW-FXP-FMP

ABDK-PROF-10x7x1450-KU-SW-FXP-FMP 26.07.03.00002 Cover Profile

Length L	1450 (mm)
Width B	10 (mm)
Height H	7 (mm)
Material	Plastics
Color	black
Measuring range [bar]	bar
Utilization design	Vacuum area gripping system FXP-FMP

EMVP 50 24V-DC 3/2 NO

EMVP 50 24V-DC 3/2 NO 10.05.02.00069 Solenoid valve EMVP for vacuum, pneumatic pilot control

Nominal size	50 (mm)
Nominal flow at 0.1 bar	310 (m³/h)
Voltage DC	24 V - DC
Function valve	3/2 multiway valve
Control valve	Normally open
Connection thread	G2"-F
Pressure range (operating pressure) [bar]	-0.95 ... 0.00 bar
Weight	1.36 (kg)

FLAN-PL 120x85x10 ST FLGR

FLAN-PL 120x85x10 ST FLGR 10.01.10.05701 Flange plate

Length L	120 (mm)
Width B	85 (mm)
Height H	10 (mm)
Material	Steel
Utilization design	Vacuum area gripping system

FLK G1/2-IG G1/2-AG

FLK G1/2-IG G1/2-AG 10.01.03.00175 Flexible suction cup mounting for adaptation to sloping surfaces

Thread G1	G1/2"-F
Thread G2	G1/2"-M
Operating temperature	0 ... 70 °C

FST-FLEX 25 HD1 G1/2-AG G3/8-IG

FST-FLEX 25 HD1 G1/2-AG G3/8-IG 10.01.10.05697 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 25 HD2 G1/2-AG G3/8-IG

FST-FLEX 25 HD2 G1/2-AG G3/8-IG 10.01.10.05695 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 50 HD1 G1/2-AG G3/8-IG

FST-FLEX 50 HD1 G1/2-AG G3/8-IG 10.01.10.05687 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 50 HD2 G1/2-AG G3/8-IG

FST-FLEX 50 HD2 G1/2-AG G3/8-IG 10.01.10.05168 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 75 HD1 G1/2-AG G3/8-IG

FST-FLEX 75 HD1 G1/2-AG G3/8-IG 10.01.10.05698 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-FLEX 75 HD2 G1/2-AG G3/8-IG

FST-FLEX 75 HD2 G1/2-AG G3/8-IG 10.01.10.05696 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 25 HD1 G1/2-AG G3/8-IG

FST-STARR 25 HD1 G1/2-AG G3/8-IG 10.01.10.05810 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 25 HD2 G1/2-AG G3/8-IG

FST-STARR 25 HD2 G1/2-AG G3/8-IG 10.01.10.05806 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	25 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 50 HD1 G1/2-AG G3/8-IG

FST-STARR 50 HD1 G1/2-AG G3/8-IG 10.01.10.05809 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 50 HD2 G1/2-AG G3/8-IG

FST-STARR 50 HD2 G1/2-AG G3/8-IG 10.01.10.05805 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	50 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 75 HD1 G1/2-AG G3/8-IG

FST-STARR 75 HD1 G1/2-AG G3/8-IG 10.01.10.05808 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 1 spring plunger
Utilization design	Mounting section
Size	90x90

FST-STARR 75 HD2 G1/2-AG G3/8-IG

FST-STARR 75 HD2 G1/2-AG G3/8-IG 10.01.10.05803 Spring plunger with both-way damping and height compensation, heavy-duty

Spring stroke Z	75 (mm)
Shape mounting elements	Heavy duty 2 spring plunger
Utilization design	Mounting section
Size	90x90

MOD-FLAN 120x120 FXP-FMP

MOD-FLAN 120x120 FXP-FMP 10.01.21.00244 Flange module

Length L	120 (mm)
Width B	120 (mm)
Height H	60 (mm)
Measuring range [bar]	bar
Thread G1	G1/2"-F
Weight	1.1 (kg)
Utilization design	Vacuum area gripping system FXP-FMP

SET fuer-Sensor(FXP/FMP)

SET fuer-Sensor(FXP/FMP)10.01.38.01194 Proximity switch mounting set

SET FXC-FMC

SET FXC-FMC 10.01.21.01291 Mounting set

Length L	119 (mm)
Width B	119 (mm)
Height H	9.6 (mm)
Measuring range [bar]	bar
Thread G1	G1/2"-F
Utilization design	Vacuum area gripping system FXC-FMC

SET FXP-FMP

SET FXP-FMP 10.01.21.02407 Mounting set

Length L	232 (mm)
Width B	119 (mm)
Height H	119 (mm)
Measuring range [bar]	bar
Weight	1.3 (kg)
Utilization design	Vacuum area gripping system FXP-FMP

SET FXP-FMP 4NUTSTEIN G20

SET FXP-FMP 4NUTSTEIN G20 10.01.21.00243 Mounting set

contains	4 sliding blocks
Measuring range [bar]	bar
Utilization design	Vacuum area gripping system FXP-FMP

STF 60 P 4.5 SSD

STF 60 P 4.5 SSD 10.07.01.00259 Dust filter

Connection	Ø60mm
Shape	Piclon housing
Nominal flow rate	270 (m³/h)
Filter pore size	3 (µm)
Additional equipment	Hose clamps SSD

VAM 40 V U BAR

VAM 40 V U BAR 10.07.02.00046 Vacuum gauge (manometer) for analogue measurement and monitoring of the vacuum

Width B	23 (mm)
Height H	46 (mm)
Outside diameter D	40 (mm)
Measuring range [bar]	-1,00 ... 0,00 bar
Shape manometers	Connection at bottom
Thread G1	G1/8"-M
Weight	0.06 (kg)

VENT-EINH 8/6 NC 24V-DC

VENT-EINH 8/6 NC 24V-DC 10.01.21.02405 Valve unit

Connection	Hose 8/6
Control valve	Normally closed
Utilization design	Vacuum area gripping system FXP-FMP

VSL 71-60 PU-DS-AS TR

VSL 71-60 PU-DS-AS TR 10.07.09.00034 Hose for vacuum and compressed-air systems

Outside diameter D	71 (mm)
Internal diameter d	60 (mm)
Length max.	20 (m)
Material hose	PU, wire spiral, antistatic
Bending radius min.	40 (mm)
Pressure range (operating pressure) [bar]	-0.69 ... 2.09 bar
Operating temperature	-40 ... 90 °C
Color	Transparent

VS-MONT 50x15.8x25 VS

VS-MONT 50x15.8x25 VS 10.06.02.00343 Vacuum switch (inst)

Length L	50 (mm)
Width B	15.8 (mm)
Height H	25 (mm)
Special function	Can be mounted upright
Measuring range [bar]	bar
Utilization design	Vacuum switch

VS-MONT 76.5x19 VSi FXP-FMP

VS-MONT 76.5x19 VSi FXP-FMP 10.01.38.02485 Vacuum switch (inst)

Length L	76.5 (mm)
Width B	19 (mm)
Special function	Can be mounted upright
Additional function area gripper	Vacuum and pressure switch VSi
Measuring range [bar]	bar
with	Vacuum and pressure switch
Utilization design	Vacuum area gripping system FXP-FMP

VTR-SL 3x RST60

VTR-SL 3x RST60 10.01.10.02779 Vacuum distributor with hose connector

Length L	439 (mm)
Width B	100 (mm)
Height H	156 (mm)
Connection	Tube end Ø60

FLAN-PL 120x120x10 FXC-FMC

FLAN-PL 120x120x10 FXC-FMC 10.01.21.00313 Flange plate

Length L	120 (mm)
Width B	120 (mm)
Height H	10 (mm)
Measuring range [bar]	bar
Utilization design	Vacuum area gripping system FXC-FMC

FLK G1/2-IG G1/2-AG V

FLK G1/2-IG G1/2-AG V 10.01.03.00207 Flexible suction cup mounting for adaptation to sloping surfaces

Thread G1	G1/2"-F
Thread G2	G1/2"-M
Operating temperature	0 ... 70 °C
Shape mounting elements	reinforced

SCHL-AN W 60-79x79x45 FMP

SCHL-AN W 60-79x79x45 FMP 10.01.38.00300 Hose connector - 90° pre-assemb

Length L	79 (mm)
Width B	79 (mm)
Height H	45 (mm)
Hole spacing X1	62 (mm)
Hole spacing Y1	50 (mm)
Outside diameter D	60 (mm)
Utilization design	Vacuum area gripping system FMP

SCHL-AN 60-79x79x45 FMP

SCHL-AN 60-79x79x45 FMP 10.01.38.00301 Hose connector - straight pre-assemb

Length L	79 (mm)
Width B	79 (mm)
Height H	45 (mm)
Hole spacing X1	62 (mm)
Hole spacing Y1	50 (mm)
Outside diameter D	60 (mm)
Utilization design	Vacuum area gripping system FMP

VRS-PL 79x79x12 SPZ G2-IG

VRS-PL 79x79x12 SPZ G2-IG 10.01.21.01280 Sealing plate - pre-assembly

Length L	79 (mm)
Width B	79 (mm)
Height H	12 (mm)
Thread G1	G2"-F
Utilization design	Schmalz palletizer
