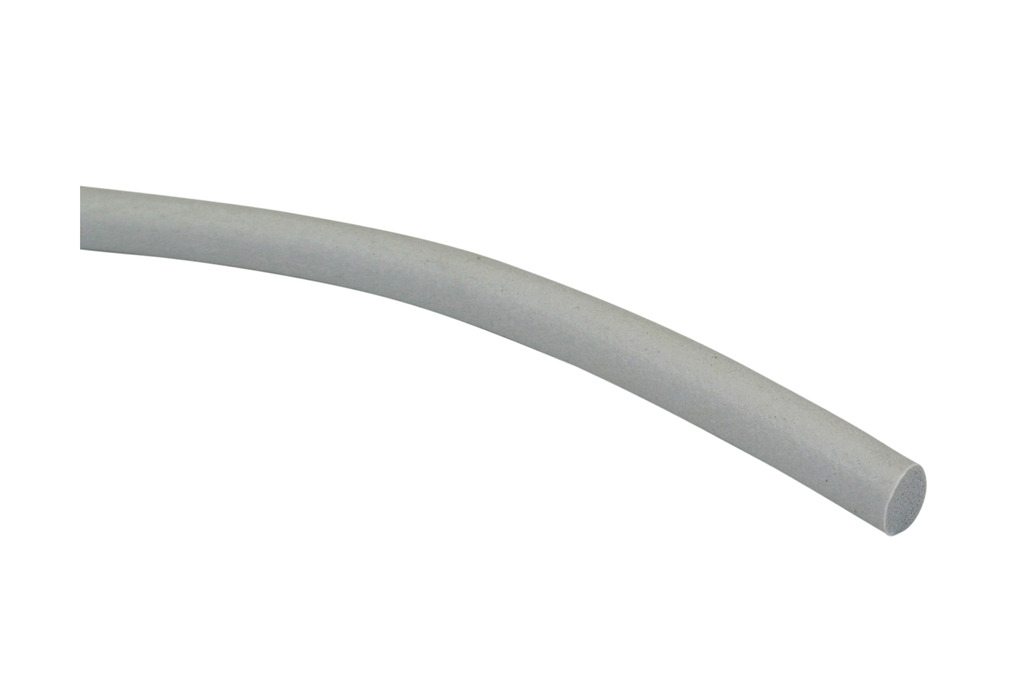

DI-SCHN 8 MOS EPDM-2010.07.04.00002Sealing cord
| Outside diameter D | 8 (mm) |
| Sealing material | EPDM |
| Material hardness [Shore A] | 20 (Shore A) |

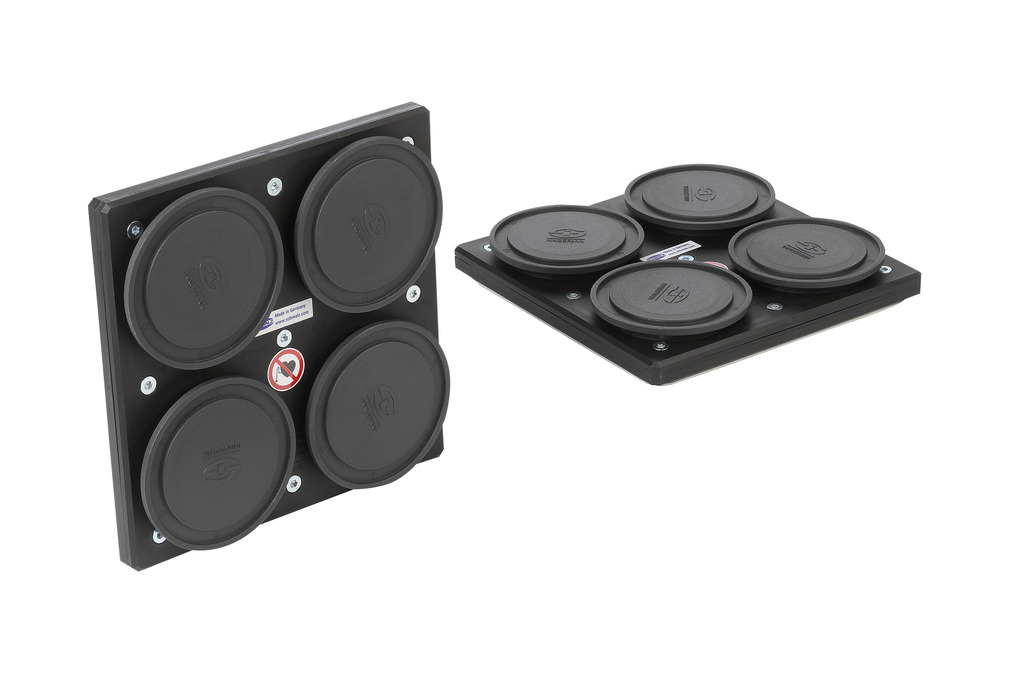

ISQB 175x175x22
Part no.: 10.01.15.00001
Quad-Base for Steelplate and Adapterplate
| Dimension (LxW) | 175x175 |
| Base area | 175 x 175 mm |
| Length L | 175 (mm) |
| Width B | 175 (mm) |
| Height H | 22 (mm) |

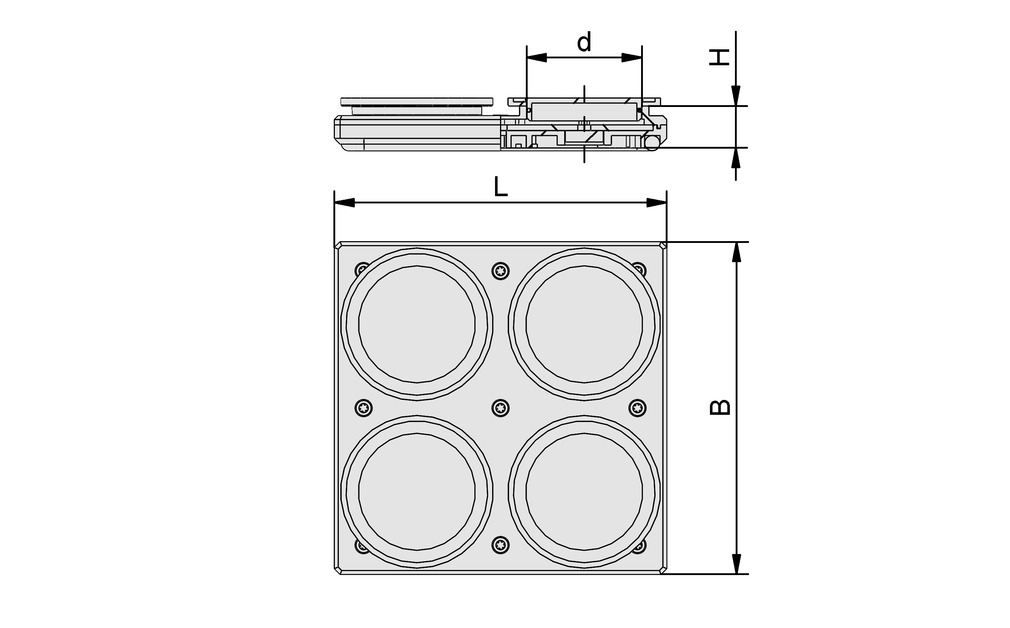

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 175 mm |
| d | 60 mm |
| H | 22 mm |
| L | 175 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 1.02 kg |
Documentation
Documentation
Spare parts
Accessories
ISCUP Cup 1 80x80x3010.01.15.00003Suction cup for Innospann
| Dimension (LxW) | 80 x 80 |
| Length L | 80 (mm) |
| Width B | 80 (mm) |
| Height H | 30 (mm) |
ISCUP Cup 2 80x40x3010.01.15.00004Suction cup for Innospann
| Dimension (LxW) | 80 x 40 |
| Length L | 80 (mm) |
| Width B | 40 (mm) |
| Height H | 30 (mm) |
ISCUP Cup 3 80x28x3010.01.15.00005Suction cup for Innospann
| Dimension (LxW) | 80 x 28 |
| Length L | 80 (mm) |
| Width B | 28 (mm) |
| Height H | 30 (mm) |
ISZR-V 80x1510.01.15.00052Spacer ring, Innospann
- Extension -
| Outside diameter D | 80 (mm) |
| Internal diameter d | 60 (mm) |
| Height H | 15 (mm) |
ISZR-V 80x2010.01.15.00053Spacer ring, Innospann
- Extension -
| Outside diameter D | 80 (mm) |
| Internal diameter d | 60 (mm) |
| Height H | 20 (mm) |
ISZR-V 80x4510.01.15.00054Spacer ring, Innospann
- Extension -
| Outside diameter D | 80 (mm) |
| Internal diameter d | 60 (mm) |
| Height H | 45 (mm) |
