Part no.: 10.01.12.04638

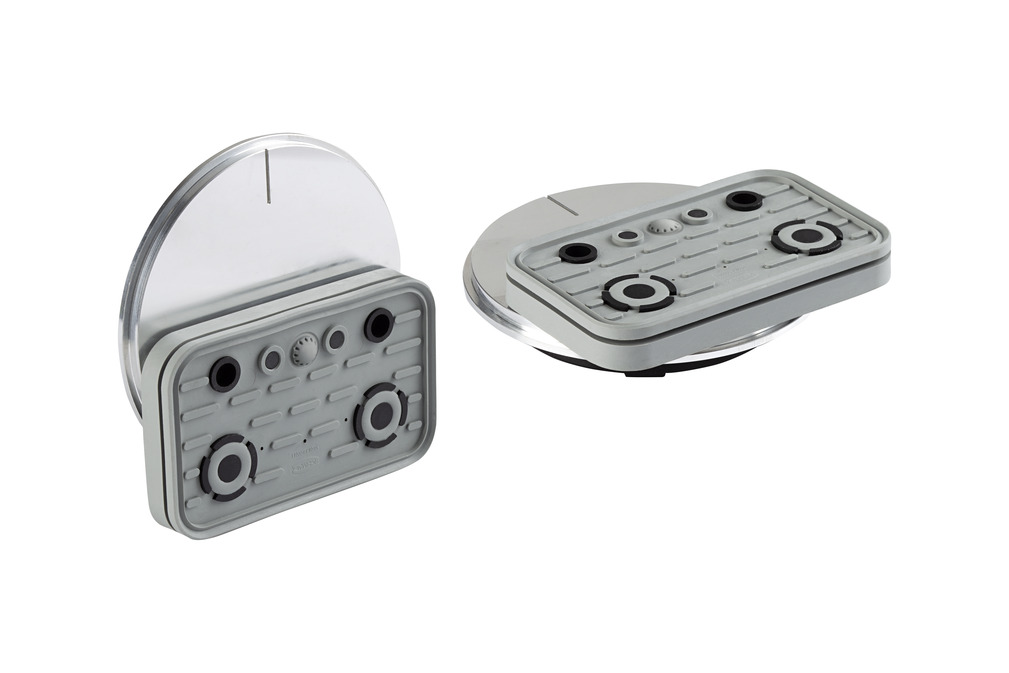

Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 125x75 |
| Height H | 25 (mm) |
| Additional function vacuum block | Touch valve + diaphragm |

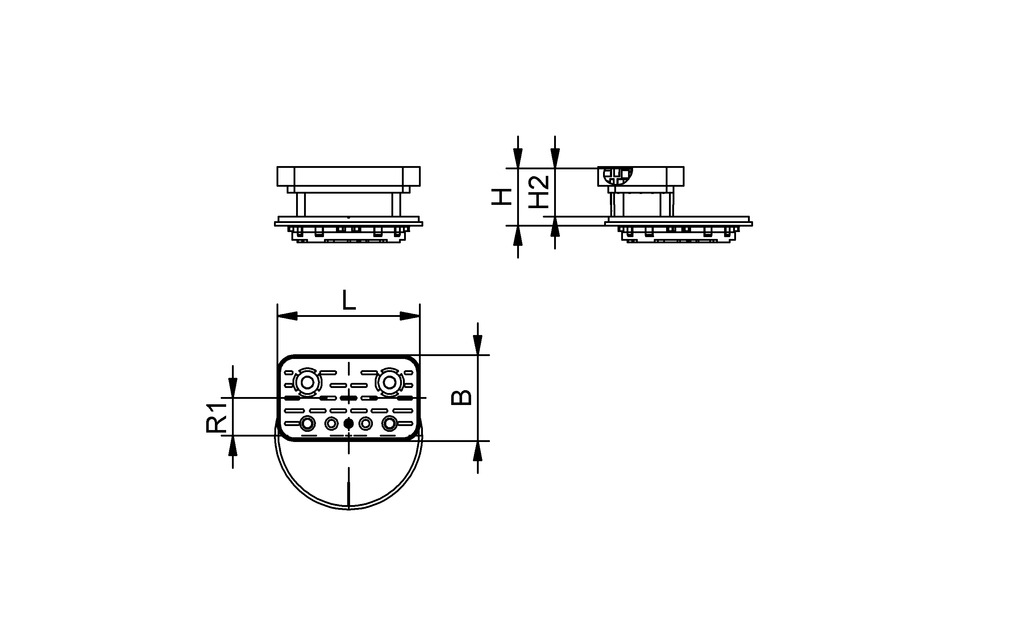

| Attribute | Value |
|---|---|
| B | 75 mm |
| B1 | 129 mm |
| H | 25 mm |
| H1 | 39.5 mm |
| H2 | 17 mm |
| L | 125 mm |
| L1 | 135 mm |
| R1 | 33 mm |
| Length L | 125 (mm) |
| Width B | 75 (mm) |
| Height H | 16.5 (mm) |
| Additional function vacuum block | Membrane |
| Outside diameter D | 9 (mm) |
| Spring stroke Z | 4.3 (mm) |
| Length L | 22.8 (mm) |
| Utilization design | VCBL-S6 |
| Length L | 125 (mm) |
| Width B | 75 (mm) |
| Height H | 17.9 (mm) |
| Additional function vacuum block | Membrane and foam rubber sealing edge |
