VCSP-O 125x75x16.5 TPE10.01.12.00011Suction-Plate for vacuum block,
(top)
| Length L | 125 (mm) |
| Width B | 75 (mm) |
| Height H | 16.5 (mm) |
VCBL-K2 125x75x75 D-360
Part no.: 10.01.12.02211
Vacuum block for Schmalz 2-circuit console
| Dimension (LxW) | 125 x 75 |
| Dimension suction plate bottom | 140 x 115 mm |
| Height H | 75 (mm) |
| Arrangement | Can be turned 360° |

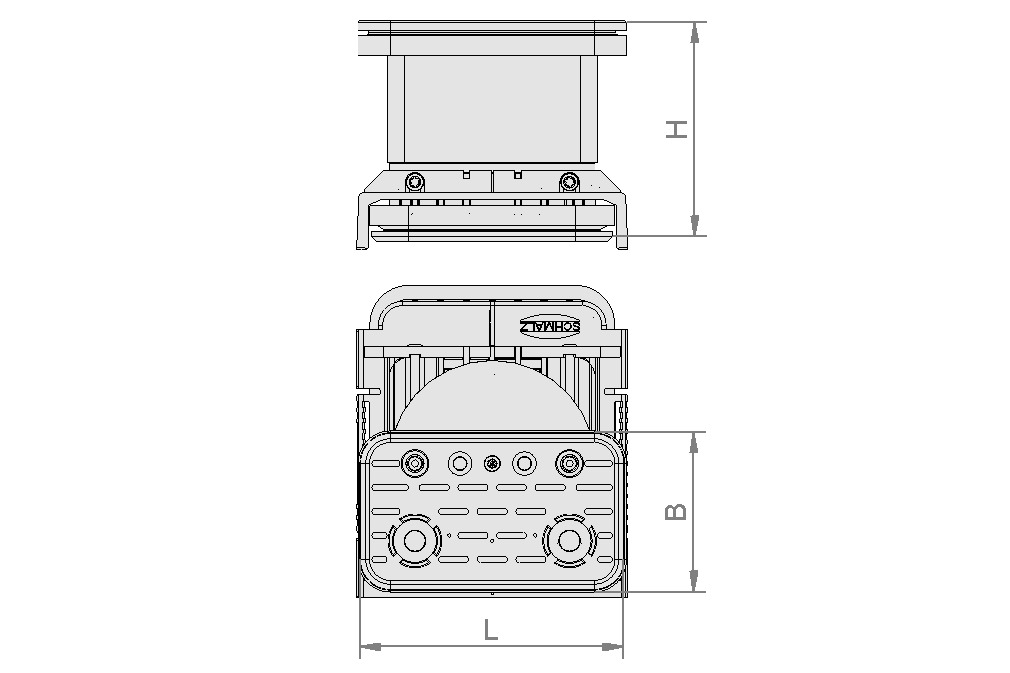

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 75 mm |
| H | 75 mm |
| H2 | 41 mm |
| L | 125 mm |
| L1 | 145 mm |
| R1 | 24 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Dimension suction plate bottom | 140x115 mm |
| Weight | 0.93 kg |
Documentation
Documentation
Spare parts
VCSP-U 140x115x16.5 VCBL-K2 TPE10.01.12.00798Suction plate for vacuum block
bottom
| Length L | 140 (mm) |
| Width B | 115 (mm) |
| Height H | 16.5 (mm) |
