Part no.: 10.01.18.04291

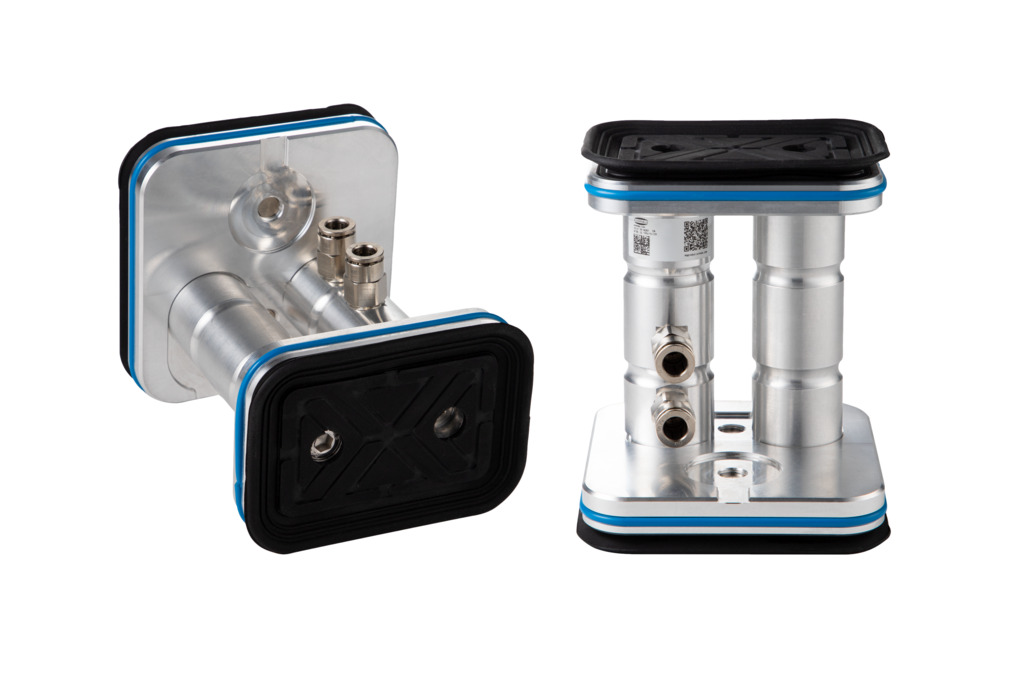

Vacuum block with hose connection for use on smooth tables for glass processing
| Length L | 100 (mm) |
| Width B | 70 (mm) |
| Height H | 120 (mm) |
| Dimension suction plate bottom | 100 x 100 mm |
| Diameter vacuum connection | 8 (mm) |
| Shape | Deviating suction area at the bottom |
| Attribute | Value |
|---|---|
| B | 70 mm |
| B1 | 74 mm |
| d | 8 mm |
| H | 120 mm |
| L | 100 mm |
| L1 | 104 mm |
| Attribute | Value |
|---|---|
| Shape | Deviating suction area at the bottom |
| Repeatability | ± 0.06 mm |
| Weight | 1.47 kg |
| Length L | 100 (mm) |
| Height H | 16 (mm) |
| Operating temperature | °C |
| Additional function vacuum block | Friction pad |
| Material | Aluminum |
| Utilization design | Vacuum block VCBL-GL |
| Outside diameter D | 13.7 (mm) |
| Internal diameter d | 8 (mm) |
| Outer hose diameter | 8 (mm) |
| Length L | 20 (mm) |
| Thread G1 | G1/8"-M |
| Operating temperature | -20 ... 80 °C |
| Material | Brass |
| Surface | nickel plated |
| Outside diameter D | 3.3 (mm) |
| Length L | 306 (mm) |
| Operating temperature | °C |
| Outside diameter D | 3.3 (mm) |
| Length L | 366 (mm) |
| Operating temperature | °C |
| Outside diameter D | 2.5 (mm) |
| Material hardness [Shore A] | 70 (Shore A) |
| Sealing material | Nitrile rubber |
| Outside diameter D | 79 (mm) |
| Internal diameter d | 49 (mm) |
| Length L | 14 (mm) |
| Operating temperature | °C |
| Outside diameter D | 78.8 (mm) |
| Internal diameter d | 78.8 (mm) |
| Length L | 14 (mm) |
| Operating temperature | °C |
